3.27 mmbucket - Multi-dimensional Uniform Bucket Partition

Segment numerical values in multiple fields specified at f= into equal sized buckets. For example, set f=a,b,c and n=5, mbucket command segments fields a,b,c into 5 equal buckets. Whereas mmbucket allocate items a,b,c into 3 dimensional space for each bucket (bucket number becomes $5^3=125$ ) such that each interval is distributed as evenly as possible.

Format

mmbucket f= n= [F=] [k=] [O=] [-ms] [-r] [i=] [o=] [bufcount=] [-nfn] [-nfno] [-x] [-q] [--help] [--version]

Parameters

`f=`	Values in this field(s) (multiple fields can be specified) is(are) partitioned.
	When there are multiple fields, the number of dimensions is determined based on equal number of buckets.
	When 1 field is specified, the result is the same as using `mbucket`.
	`-x,-nfn` options can be used to specify field number (0〜).
`n=`	Each bucket size corresponds to a field specified at `f=`.
	The number of items defined here is the same as the number of fields specified at `f=`.
	However, if there is only 1 number specified, the same partition number is applied to other field.
`F=`	Ouput format [default value: 1]
	Output format of bucket name.
	0: Display bucket number.
	1: Display value range of buckets.
	2: Display both bucket number and value range.
`k=`	Unique key field(s) (multiple fields can be specified) to retrieve rows of data for partitioning into buckets.
`O=`	Specifies the output file with numeric range of each bucket from the items specified in the `f=` parameter.
`-ms`	When partitioning buckets for each field sequentially, the first item is changed multiple times
	during the bucket partition trial.
	For further information, refer to the "Introduction to Algorithms" to find out the best possible solution.
`-r`	Display bucket number in reverse order.

Examples

Example 1: Basic Example

Partition the number of records in column x,y into two multi-dimentional equal subsets. At the same time, save the numeric range of each bucket in the file named rng.csv.

$ more dat1.csv
id,x,y
A,2,7
B,6,7
C,5,6
D,7,5
E,6,4
F,1,3
G,3,3
H,4,2
I,7,2
J,2,1
$ mmbucket f=x:xb,y:yb n=2,2 O=rng.csv i=dat1.csv o=rsl1.csv
calculating on dimension ... #0 #1 done. VAR=30 updated!
calculating on dimension ... #0 #1 done. VAR=28 updated!
calculating on dimension ... #0 #1 done. VAR=28
#END# kgmbucket O=rng.csv f=x:xb,y:yb i=dat1.csv n=2,2 o=rsl1.csv
$ more rsl1.csv
id,x,y,xb,yb
A,2,7,1,2
B,6,7,2,2
C,5,6,2,2
D,7,5,2,2
E,6,4,2,1
F,1,3,1,1
G,3,3,1,1
H,4,2,2,1
I,7,2,2,1
J,2,1,1,1
$ more rng.csv
fieldName,bucketNo,rangeFrom,rangeTo
x,1,,3.5
x,2,3.5,
y,1,,4.5
y,2,4.5,

Example 2: Outupt Format

Partition the number of records in column x,y into two multi-dimentional equal subsets based on the id field. The output format shall display the both the bucket number and numeric range.

$ more dat2.csv
id,x,y
A,2,7
A,6,7
A,5,6
B,7,5
B,6,4
B,1,3
C,3,3
C,4,2
C,7,2
C,2,1
$ mmbucket k=id f=x:xb,y:yb n=2,2 F=2 i=dat2.csv o=rsl2.csv
calculating on dimension ... #0 #1 done. VAR=3 updated!
calculating on dimension ... #0 #1 done. VAR=3
calculating on dimension ... #0 #1 done. VAR=3 updated!
calculating on dimension ... #0 #1 done. VAR=3
calculating on dimension ... #0 #1 done. VAR=6 updated!
calculating on dimension ... #0 #1 done. VAR=6
#END# kgmbucket F=2 f=x:xb,y:yb i=dat2.csv k=id n=2,2 o=rsl2.csv
$ more rsl2.csv
id%0,x,y,xb,yb
A,2,7,1:_3.5,2:6.5_
A,6,7,2:3.5_,2:6.5_
A,5,6,2:3.5_,1:_6.5
B,7,5,2:3.5_,2:4.5_
B,6,4,2:3.5_,1:_4.5
B,1,3,1:_3.5,1:_4.5
C,3,3,1:_3.5,2:1.5_
C,4,2,2:3.5_,2:1.5_
C,7,2,2:3.5_,2:1.5_
C,2,1,1:_3.5,1:_1.5

Overview of algorithm¹

Assuming data set $D$ consists of two columns $A,B$ with numerical values. The numeric range in column $A$ and $B$ is divided into $K$ bits and $L$ bits respectively. mmbucket determines how to divide the data equally into segments (buckets). Dispersion is used as a basis to measure the uniformity of distribution. The variance value minimizes the number of buckets partitions based on the heuristics described below, which is not guaranteed to be optimal. The algorithm is described as follows.

Partition data in field $A$ by one dimensional uniform partition.
Determine the partition of $A$ from step 1, partition the range of numerical values in $B$ into buckets. The evaluation criteria for two-dimensional bucket partition is based on the partitions. Dynamic programming and one-dimensional bucket partition is used to divide buckets in to equal sized partitions.
Next, using the partitions of $B$ obtained from step 2, partition the range of numerical values in $A$ . As in step 2, the values of two dimensional bucket partition is used as an evaluation criteria.
Repeat step 2 and 3 recursively until improvement of variance is minute.
Return partition output.

During implementation, when $A$ and $B$ ’s parts are switched in step 1, the solution returns the one with more optimal results. The same algorithm applies to uniform buckets partition for three or more dimensions.

Comparison of mbucket and mmbucket

The following explains how multi-dimensional bucket partition operates compared to one-dimensional bucket partition. Table 3.5 shows two columns x and y, with 10 rows data of id from A to J.

Using this data, each of x and y is divided into two partitions, thus create a total of four buckets as shown in Figure . The results of one-dimensional bucket partition on x and y is shown in column x1, y1. In addition, the results of multi-dimensional bucket partition is shown in column x2 and y2 as displayed in Figure .

Variance (sum of squares of each bucket : for more information, refer to formulation of mbucket) of one dimensional bucket partition is computed as $Var_ a’=1^2+4^2+4^2+1^2=34$ , and $Var_ b’=1^2+3^2+3^2+3^2=28$ for two-dimensional bucket partition. During one-dimensional bucket partition x and y is treated independently to optimize solution with minimal variance (i.e. each is divided into 5). The solution of one dimensional bucket partition is inferior to two-dimensional bucket partition. One dimensional bucket partition can be improved by using the multi-dimensional bucket partition. However, multi-dimensional partition requires a lot of CPU time dependent on the contents of the data.

Table 3.5: Sample result of output from mbucket,mmbucket

Data			mbucket		mmbucket
id	x	y	x1	y1	x2	y2
A	2	7	1	2	1	2
B	6	7	2	2	2	2
C	5	6	2	2	2	2
D	7	5	2	2	2	2
E	6	4	2	2	2	1
F	1	3	1	1	1	1
G	3	3	1	1	1	1
H	4	2	1	1	2	1
I	7	2	2	1	2	1
J	2	1	1	1	1	1

$\includegraphics[scale=.50]{figure/mmbucket/split_mbucket.eps}$

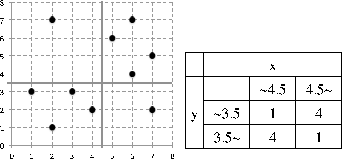

Table 3.6: One-dimensional partition (mbucket)×２

$\includegraphics[scale=.50]{figure/mmbucket/split_mmbucket.eps}$

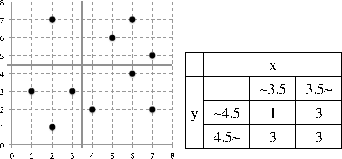

Table 3.7: Two-dimensional partition (mmbuket)

Precision experiment using on variety of fields

The following compares the precision of mmbucket and mbucket using real data collected by Tropical Atmosphere Ocean (TAO) Project. The project is designed for the study of year-to-year climate variations related to El Nino the Southern Oscillation (ENSO), and provides provides in-situ data collection of high quality oceanographic and surface meteorological data for monitoring, forecasting, and understanding of climate swings associated with El Nino and La Nina. Snapshot of the data is shown in the following table.

Table 3.8: Data set used for precision experiment

id	year	month	day	date	latitude	longitude	zonwinds	merwinds	humidity	air_temp.	sstemp
4060	93	5	9	930509	-0.02	-109.96	-2.1	2.1	81.2	26.8	27.02
4061	93	5	10	930510	-0.02	-109.96	-3.4	1.4	84.2	26.95	26.91
4062	93	5	11	930511	-0.02	-109.96	-3.8	2.2	84.9	26.98	26.78
4063	93	5	12	930512	-0.02	-109.96	-3	1.5	86.9	26.93	26.74
4064	93	5	13	930513	-0.02	-109.96	-4.5	1.9	87.6	27.01	26.82
4065	93	5	14	930514	-0.02	-109.96	-5	1.3	85.6	26.96	26.68

The precision experiment uses attributes with numeric values (7 attributes from latitude to sea surface temperature) for bucket partition. The number of record rows is 93,935. Statistics for each attribute is shown in Table 3. "Types of data values" significantly affects computation time of bucket partition.

Table 3.9: Various statistics of numerical data

Measurement	Latitude	Longitude	Zonal wind	North-south wind	Humidity	Temp	Sea surface temp
Type	482	924	228	206	385	1104	1201
Arithmetic average	0.305	-70.8	-3.35	-0.046	81.3	27.1	27.9
Standard deviation	4.77	128.7	3.42	3.021	5.28	1.674	1.87
Minimum	-8.33	-180	-10.7	-10.6	52.1	17.5	18.2
Mean	0.01	-125	-4.1	-0.1	81.3	27.5	28.4
Maximum	9.05	170.0	14.3	13	99.9	31.5	31.0

The comparison of variance for one-dimensional bucket partition (mbucket) and two-dimensional bucket partition (mmbucket) based on a total of 21 combinations from the 7 attributes are distributed into two columns as shown in Table 3.10.

For example, the first row shows the comparison results of bucket partition on “temperature × humidity”, the variance of mbucket is 408274409 and the variance of mmbucket is 406438211, resulting in the ratio of (mmbucket / mbucket) 0.996. The ratio is shown for partitions of 10×10,15×15 and 20×20. The results differs according to the combination of attributes, there are minimal improvements in some combinations such as "humidity × zonal wind speed", improvements can be seen at “latitude x longtitude (15 x 15) with an improvement in accuracy of 19% (1-0.81).

Table 3.10: Comparison of two-dimensional partition accuracy of mbucket and mmbucket

		Variance (5×5 partition)		Comparison of variance (mmbucket/mbucket)
Item 1	Item 2	mbucket	mmbucket	5×5	10×10	15×15	20×20
Temperature	Humidity	408274409	406438211	0.996	0.987	0.988	0.981
	Latitude	374125463	371258775	0.992	0.988	0.982	0.964
	Longitude	490727955	454663065	0.927	0.949	0.946	0.929
	North-south wind speed	396436813	394724219	0.996	0.991	0.993	0.989
	Sea surface temperature	816199131	747215787	0.915	0.897	0.883	0.862
	Zonal wind speed	382069455	381225143	0.998	0.998	0.997	0.996
Temperature	Humidity	368492959	367941709	0.999	0.994	0.994	0.990
	Latitude	372116309	370591351	0.996	0.991	0.993	0.986
	North-south wind speed	355658757	355658757	1.000	1.000	1.000	1.000
	Sea surface temperature	380382203	379546293	0.998	0.991	0.991	0.983
	Zonal wind speed	357729819	357697283	1.000	1.000	1.000	1.000
Latitude	Longtitude	365459223	361754113	0.990	0.923	0.812	0.816
	North-south wind speed	371478669	370970251	0.999	0.988	0.985	0.982
	Sea surface temperature	392810425	389589403	0.992	0.987	0.979	0.952
	Zonal wind speed	364521077	364406663	1.000	0.999	0.991	0.992
Longtitude	Latitude	414154185	408431667	0.986	0.976	0.976	0.962
	Sea surface temperature	510979465	463576537	0.907	0.945	0.939	0.934
	Zonal wind speed	400021527	392710641	0.982	0.983	0.982	0.973
North-south wind	Sea surface temperature	393233841	392432943	0.998	0.995	0.994	0.993
	Zonal wind speed	359290669	359074015	0.999	1.000	1.000	0.997
Sea surface temp	Zonal wind speed	442877539	438326669	0.990	0.988	0.984	0.986

Speed Comparison

Next, the experiments are carried out to compare the differences in speed by against different number of partitions. The execution time is computed using the same data “temperature × sea surface temperature” and “latitude × longitude” with 5 to 40 partitions at increments of 5. The results are shown in Table 3.11. The execution time of mbucket is consistent regardless of the number of partitions. However, more time is required to compute the number of partitions for two dimensional partitions. This is due to the fact that the algorithm is not efficient in selecting multidimensional orthogonal numeric range required by computation. The partition speed will be noted as possible improvements in the next version.

Table 3.11: Sample results of mbucket,mmbucket

	Temperature×Sea Surface Temperature		Latitude×Longtitude
Number of buckets	mbucket	mmbucket	mbucket	mmbucket
5	0.221	2.21	0.216	0.67
10	0.227	3.90	0.216	1.67
15	0.233	10.4	0.230	3.28
20	0.231	26.1	0.228	7.13
25	0.232	32.9	0.237	13.3
30	0.236	46.7	0.236	11.4
35	0.237	62.3	0.240	15.2
40	0.237	80.1	0.237	25.8

Related Command

mbucket : This command processes one-dimensional bucket partition for each field even when more than one field is specified.

Footnotes

This algorithm is developed by Professor Naoki Kato (Kyoto University, Graduate School of Engineering).
